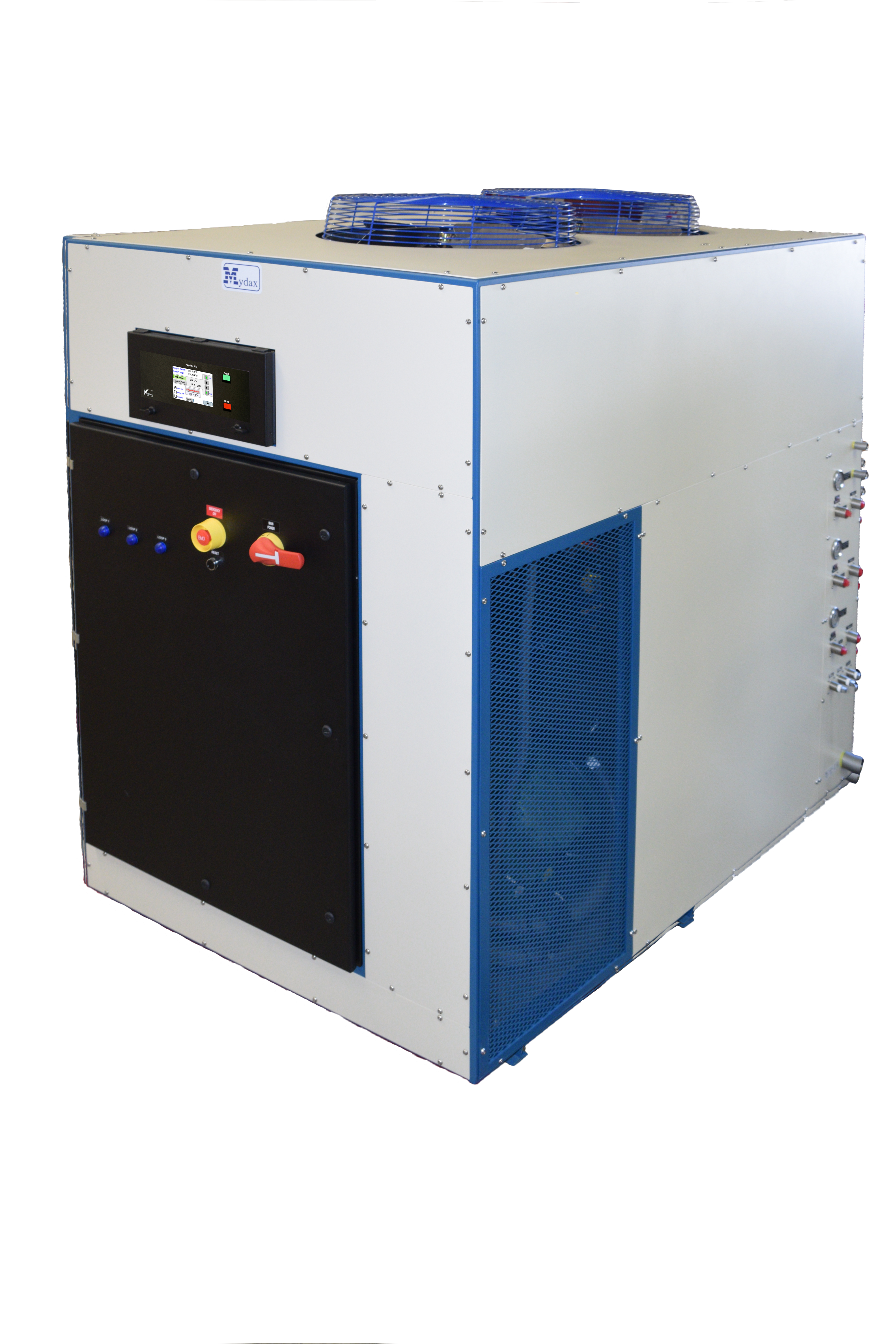

Air-Cooled Chiller Systems On Mydax, Inc.

Catalog

1 - 17 of 17 | Results Per Page | View | Unit of Measure

1

Request Information Compare Items

Item #	Temperature Range	BTU/hr	kW	Tons	Stability	Heating Capacity

1L120A-OD	N/A -10 to +30 ºC	N/A 120,000	N/A 35 kW at -10 ºC	N/A 10.00	N/A ±1.0 ºC	N/A 3,000 W
1L25A	N/A -25 to +45 ºC	N/A 25,000	N/A 7.3 kW at -20 ºC	N/A 2.08	N/A ±1.0 ºC	N/A 3,000 W
1M130A-OD	N/A 0 to +30 ºC	N/A 130,000	N/A 38 kW at 16 ºC	N/A 10.83	N/A ±1.0 ºC	N/A 3,000 W
1M16A	N/A 0 to +60 ºC	N/A 16,000	N/A 6 kW at +20 ºC	N/A 1.33	N/A ±1.0 ºC	N/A 6,000 W
1M16A1	N/A 0 to +60 ºC	N/A 16,000	N/A 4.82 kW at 0 ºC	N/A 1.33	N/A	N/A
1M215A-OD	N/A 0 to +30 ºC	N/A 215,000	N/A 63 kW at 16 ºC	N/A 17.92	N/A ±1.0 ºC	N/A 3,000 W
1M240A-OD	N/A 0 to +30 ºC	N/A 240,000	N/A 70 kW at 7 ºC	N/A 20.00	N/A ±1.0 ºC	N/A 3,000 W
1M60A-OD-FT	N/A +4.4 to +30 ºC	N/A 60,000	N/A 17.5 kW at +4.4 ºC	N/A 5.00	N/A ±1.0 ºC	N/A
1M6A	N/A 0 to +60 ºC	N/A 6,000	N/A 1.8 kW at +10 ºC	N/A 0.50	N/A	N/A
1M85W	N/A +10 to +30 ºC	N/A 85,000	N/A 25 kW at +20 ºC	N/A 7.08	N/A	N/A
2M11A	N/A +10 to +30 ºC	N/A 11,000	N/A 3.2 kW at 22 ºC	N/A 0.91	N/A ±2.0 ºC	N/A
1LH10A	N/A -35 to 105 ºC	N/A 10,000	N/A 3 kW at -20 ºC	N/A 0.83	N/A ±1.0 ºC	N/A 3,000 W
1M16A PAO	N/A 0 to +60 ºC	N/A 16,000	N/A 6 kW at +20 ºC	N/A 1.33	N/A ±1.0 ºC	N/A 3,000 W
1M50A-OD	N/A 0 to +25 ºC	N/A 50,000	N/A 14.6 kW at +16 ºC	N/A 4.10	N/A ±1.0 ºC	N/A 12 kW
1M6A PAO	N/A 0 to +60 ºC	N/A 6,000	N/A 1.8 kW at +10 ºC	N/A 0.50	N/A ±1.0 ºC	N/A 1,500 W
3LM30A4-OD	N/A -30 to +60 ºC	N/A 30,000	N/A 9 kW at -15 ºC (Total is shared between 3 loops Ambient range -20 ºC to +43 ºC)	N/A 2.50	N/A ±0.5 ºC	N/A 3 kW Each Loop
3LM30A4-OD PAO	N/A -30 to +60 ºC	N/A 30,000	N/A 9 kW at -15 ºC (Total is shared between 3 loops)	N/A 2.50	N/A ±0.5 ºC	N/A 3 kW Each Loop
