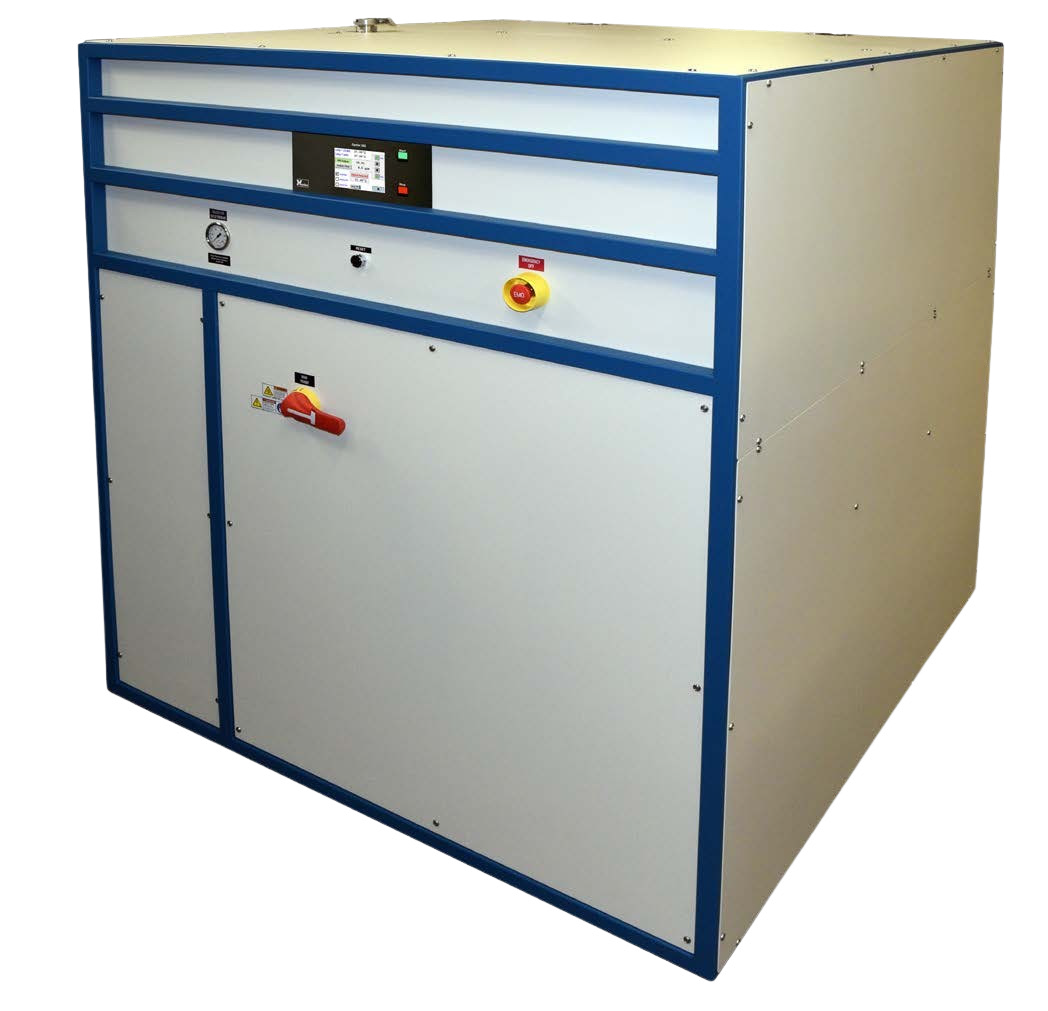

With over three decades of experience and refinement of low-temperature liquid chiller / heater systems, Mydax has designed the CryoDax series of chillers to provide Quality, Reliability and Performance for demanding industrial temperature control applications.
With a temperature range of -70°C to +80°C standard for CryoDax models and large cooling capacities at low temperatures, CryoDax X and CryoDax chiller systems offer industrial temperature control solutions for Extraction, Hydrogen Fueling, Semiconductor, Pharmaceutical, Automotive, Aerospace, Medical and Custom Applications.
With a temperature range of -70°C to +80°C standard for CryoDax models and large cooling capacities at low temperatures, CryoDax X and CryoDax chiller systems offer industrial temperature control solutions for Extraction, Hydrogen Fueling, Semiconductor, Pharmaceutical, Automotive, Aerospace, Medical and Custom Applications.
Unit of Measure
Technical Specs
Brands |
N/A Mydax, Inc. |
Fluid Setpoint Range |
N/A -70 to +80 ºC |
Temperature Stability |
N/A ± 1.0 ºC at Temperatures Below -30 ºC |
Net Cooling Capacities at 27.5 Kilowatt (kW) Power |
N/A -30 ºC |
Net Cooling Capacities at 18.5 Kilowatt (kW) Power |
N/A -40 ºC |
Net Cooling Capacities at 11.0 Kilowatt (kW) Power |
N/A -50 ºC |
Net Cooling Capacities at 5.0 Kilowatt (kW) Power |
N/A -60 ºC |
Note for Net Cooling Capacities |
N/A Ratings on 60 Hz with standard pump |
Nominal Heating Capacity |
N/A 3,000 W |
Recirculating Flow/Pressure |
N/A 30 gpm at 35 psi |
Stainless Steel Reservoir |
N/A 20 gallons (Sealable) |
Recirculating Fluid |
N/A Syltherm HF or XLT |
Recirculating Supply/Return Fittings |
N/A 1-1/4 in. Stainless Steel Female National Pipe Thread (FNPT) |
Facilities Requirements |
N/A Up to 21 gpm at 70 ºF inlet, 20 psi ΔP |
Maximum Heat Rejection |
N/A 259,000 Btu/hr |
Facilities Supply/Return Fittings |
N/A 1 in. Stainless Steel Female National Pipe Thread (FNPT) |
Approximate Dry Weight |
N/A 2,200 lb |
Warranty (Parts and Labor) |
N/A 12 months |
Patents |
N/A #4,742,689 #4,934,155 #4,959,972 |
Refrigeration |
N/A Two 20 Hp semi-hermetically sealed compressor, R448A refrigerant |
Electrical Service
Alternating Current (AC) Voltage for 60 Hertz (Hz) Frequency |
N/A 440/480 V |
Alternating Current (AC) Voltage for 50 Hertz (Hz) Frequency |
N/A 380/420 V |
Phase |
N/A 3 |
Current |
N/A 80 A |
Standard Features
Standard Features |
N/A

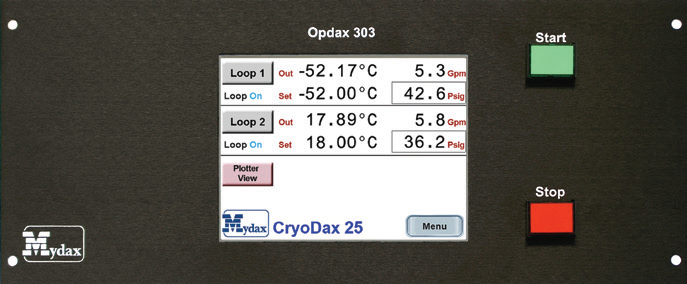

Controller - PID type controller with a 5.7" color graphic touch-screen display providing fully proportional cooling and heating with the Mydax patented refrigeration circuit. Condenser - Brazed plate heat exchanger with a water flow control valve to automatically maintain condensing temperature. Construction - Welded steel frame with aluminum panels, frame and panels are powder coated for durability, mounted on I-beam supports Safety Standards - UL-508A, National Electrical Code NFPA-70, Electrical Standard for Industrial Machinery NFPA-79 Interfacing - Remote contacts providing run and alarm status, RS-232 serial interface for remote control and monitoring. Safety Interlocks - Fluid low level and empty switches, refrigerant high and low pressure switches, fluid over-temperature switch, emergency off switch. Recirculation - 3.0 Hp canned-motor centrifugal pump, turbine fluid flowmeter in recirculating return, pressure gauge, overpressure switch, brazed plate heat exchanger, copper piping |
